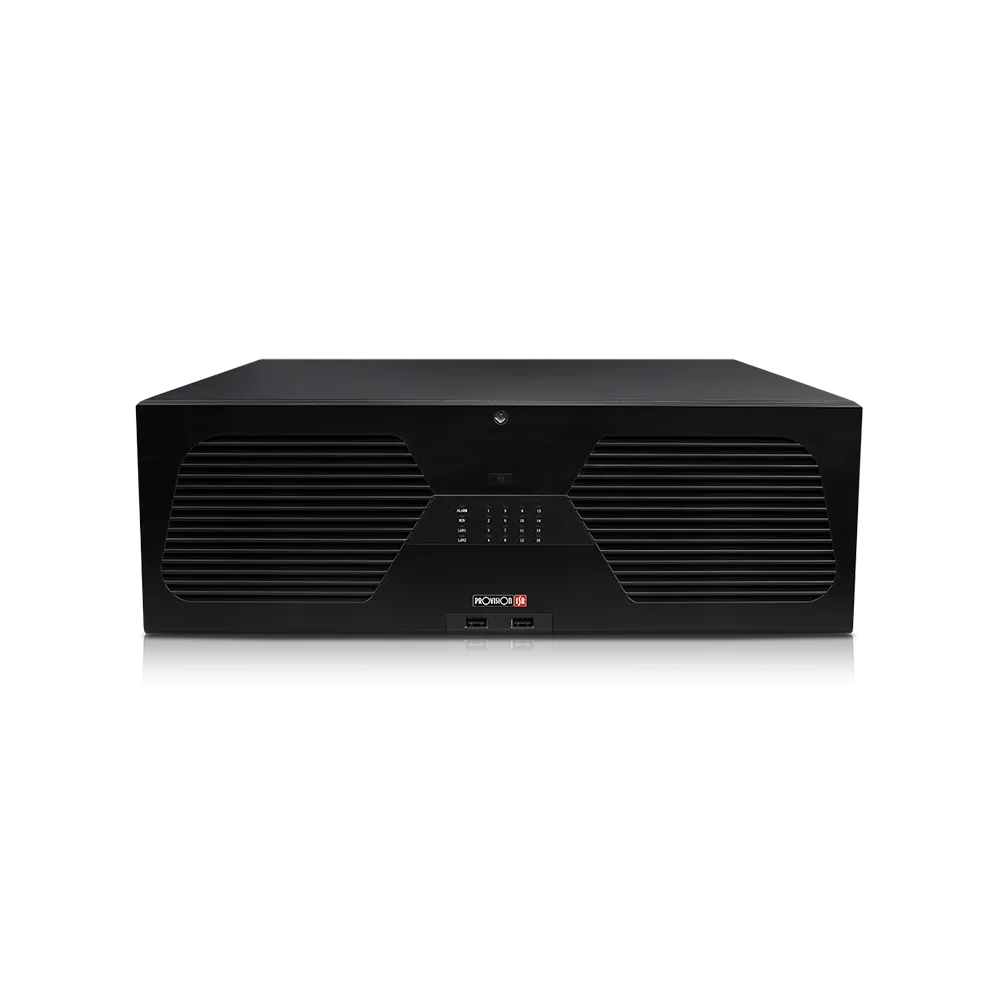

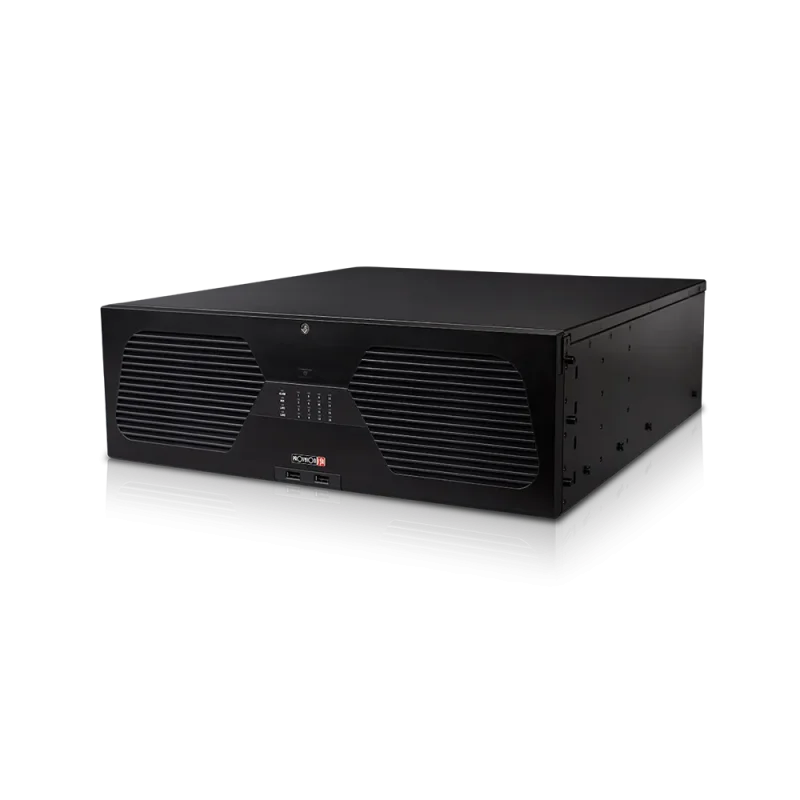

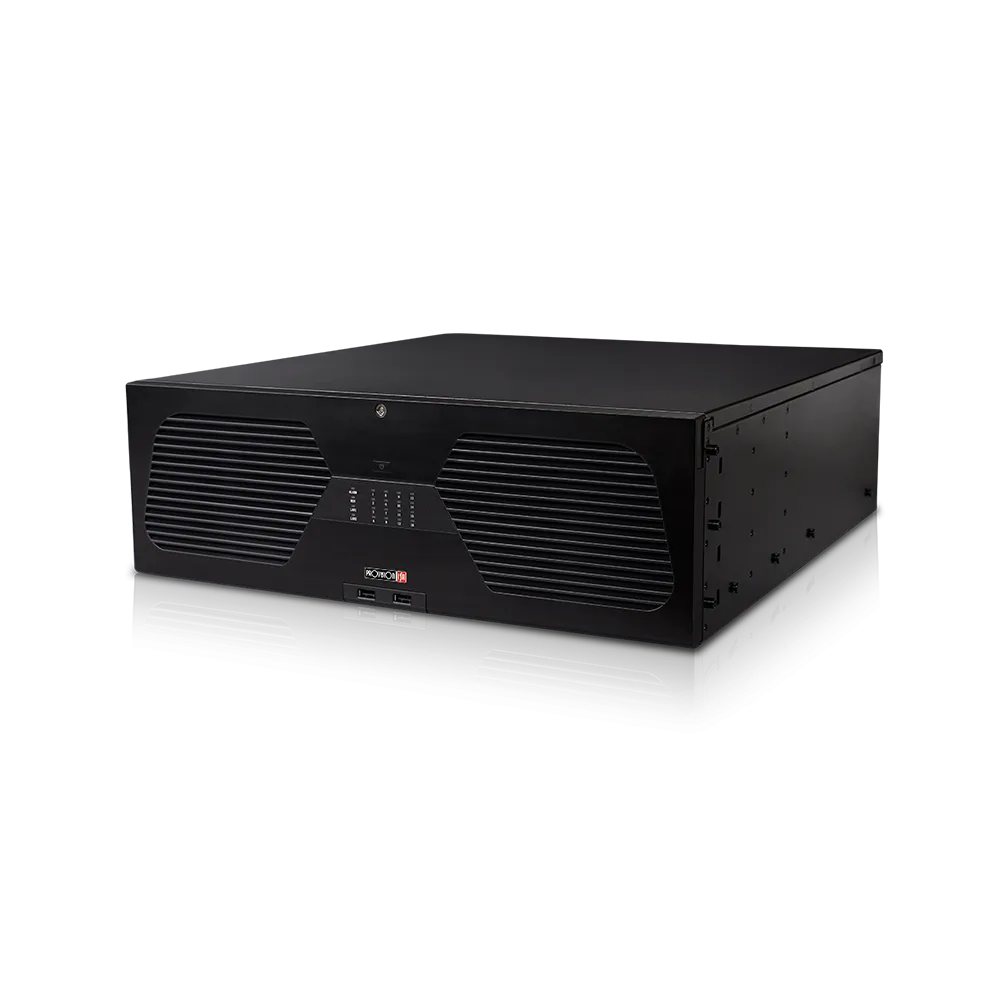

Provision 128Channel NVR
Provision-ISR NVR8-128RT(3U) is an easy-to-install solution suitable for big-sized installations (up to 128 channels). The device features 8 alarm inputs + 4 alarm outputs and provides you with everything you need for a trouble-free CCTV project. All hardware components, including the Raid, are validated to meet the demands for reliable high-definition surveillance.
Product Description
Provision-ISR NVR8-128RT(3U) is an easy-to-install solution suitable for big-sized installations (up to 128 channels). The device features 8 alarm inputs + 4 alarm outputs and provides you with everything you need for a trouble-free CCTV project. All hardware components, including the Raid, are validated to meet the demands for reliable high-definition surveillance.
Kit Includes
- Standalone 128 channel NVR
- H.265
- Support: VMS
- DDA Analytics
- Facial, Fisheye & LPR
- 16 x SATA – 10TB (not included)
- No POE
Features
Video:
- Input: 128 Channel Support
- 128 Channel Standard Connection (Via RJ-45 Network Port)
- Output: HDMI1 (4K 30/60Hz, 1080P1280x1024), HDMI2 + VGA (1280×1024, 1080P)
Bandwidth:
- Incoming: 384Mbps
- Outgoing: 384Mbps
Decoding Support:
- H.265S/H.265+/H.265/H264
Analytics:
- Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, Smart Search, LPR, Loitering Detection, Illegal Parking, Audio Exception
Recording:
- 128CH 8MP Real-Time
- FPS: 3200 (PAL) / 3840 (NTSC)
Playback:
- Local: 16Ch Simultaneously
- Remote: 36Ch Simultaneously
Audio:
- Input: 1CH + IPC Inputs
- Output: 1CH + IPC Output
- 2 Way Audio
Alarm:
- Input: 8+IPC
- Output: 4+IPC
Storage:
- 16 x SATA (Up to 10TB each)
- 2 x E-SATA (Up to 10TB each)
- RAID: (0/1/5/6/10) Support
USB Port:
- 2 USB 2.0 Port + 1 USB 3.0 Port
Network:
- 2 x RJ-45: 10/100/1000Mbps Each
Remarks:
- The following features are based on firmware v1.4.10_70999 and are subject to firmware version changes.
