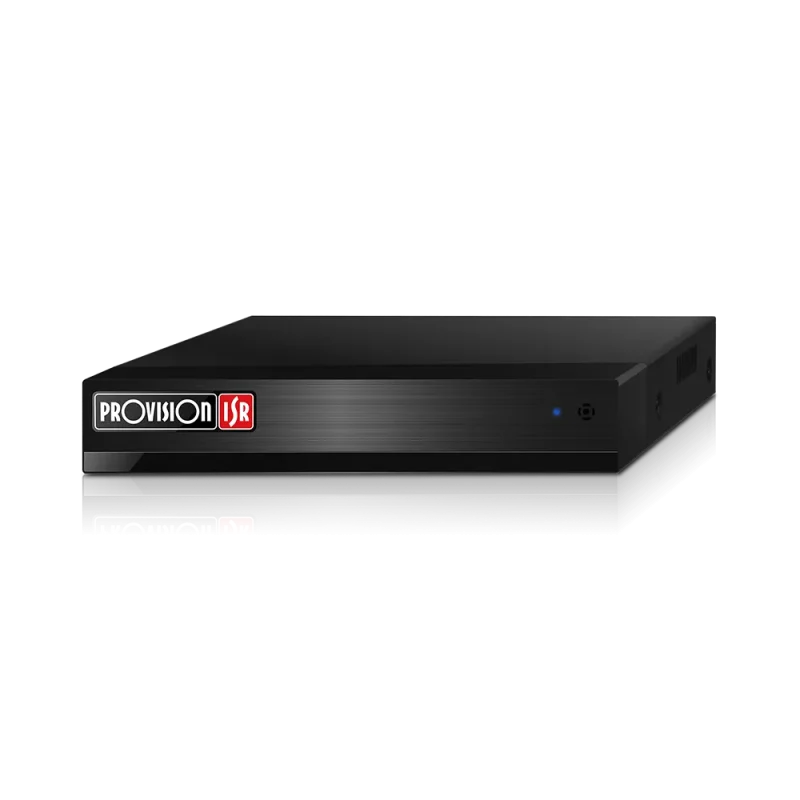

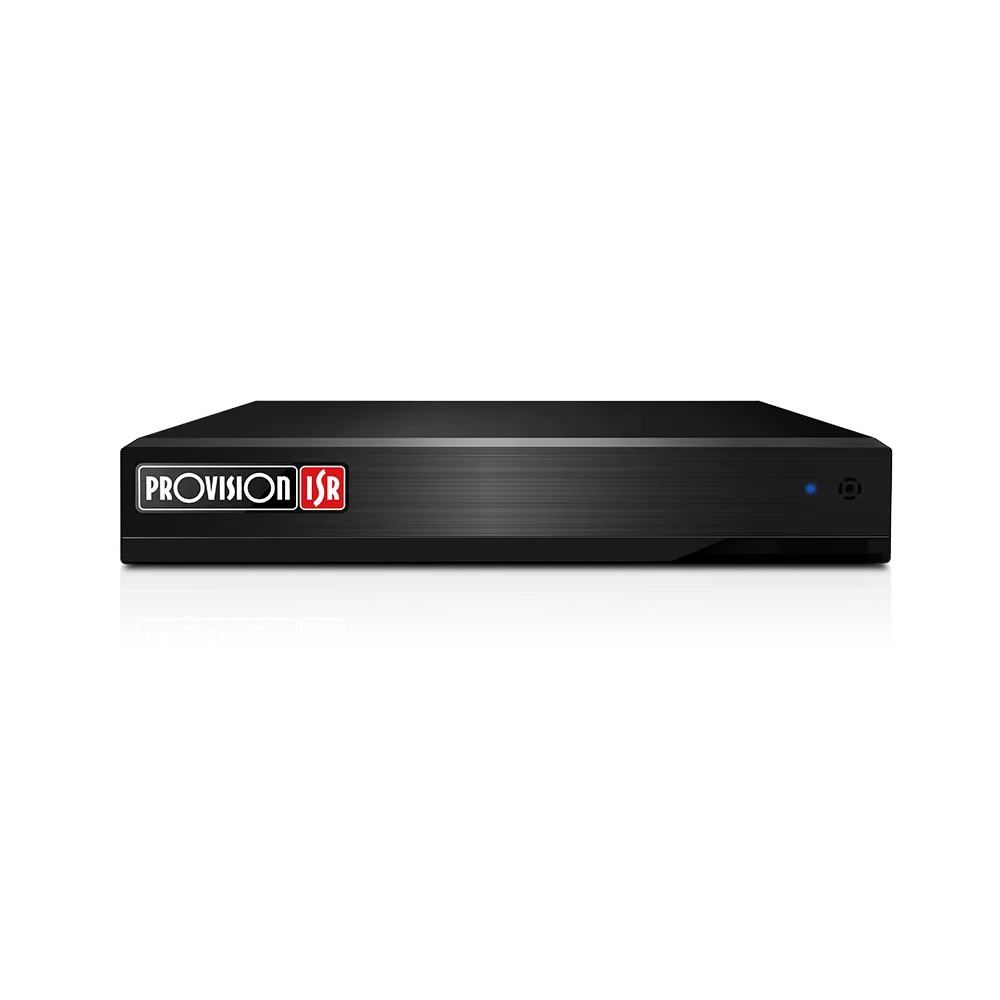

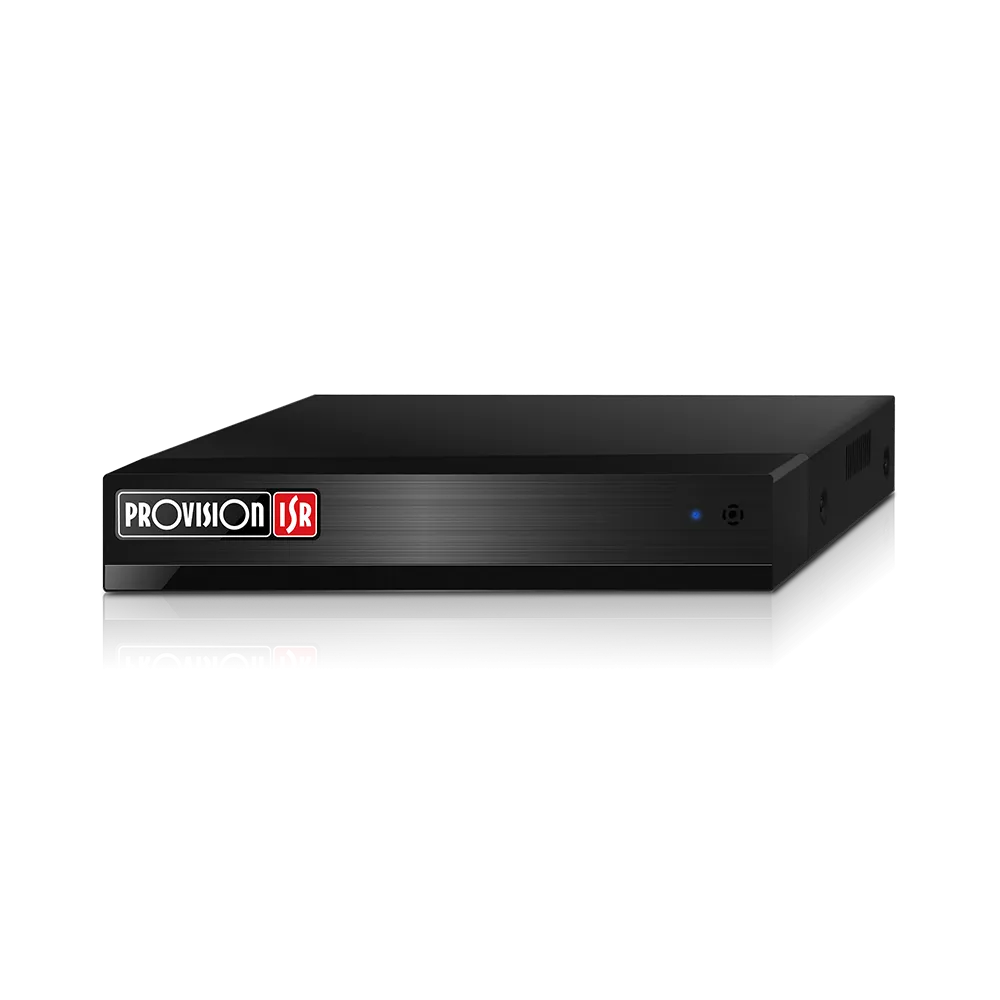

Provision 16Channel NVR
Provision-ISR NVR8-16400A(1U) is an easy-to-install solution suitable for mid-sized installations (up to 16 channels). The device features 4 alarm inputs + 1 alarm output and provides you with everything you need for a trouble-free CCTV project.
Product Description
Provision-ISR NVR8-16400A(1U) is an easy-to-install solution suitable for mid-sized installations (up to 16 channels). The device features 4 alarm inputs + 1 alarm output and provides you with everything you need for a trouble-free CCTV project.
Kit Includes
- Standalone 16 channel NVR
- 8MP Resolution
- H.265
- Support: VMS
- Video Analytics & AI
- I/O
- Audio, 2xSATA – 8TB
- No POE
Features
Video:
- Input: 16 Channel Support
- 16 Channel Standard Connection (Via RJ-45 Network Port)
- Output: HDMI (4K, 1080P), VGA (1080P, 1280×1024, 1024×768)
Bandwidth:
- Incoming: 112Mbps
- Outgoing: 112Mbps
Decoding Support:
- H.265S/H.265+/H.265/H264
Analytics:
- Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR, Thermal(Limited Support).
- Advanced Face Recognition Mode: Supports 2 Non-AI IPCs and performs face detection and recognition.
Recording:
- 16CH 8MP Real-Time
- FPS: 400 (PAL) / 480 (NTSC)
Playback:
- Local: 16Ch Simultaneously
- Remote: 16Ch Simultaneously
Audio:
- Input: 1CH + IPC Inputs
- Output: 1CH + IPC Output
- 2 Way Audio
Alarm:
- Input: 4+IPC
- Output: 1+IPC
Storage:
- 2 x SATA (Up to 10TB each)
USB Port:
- 2 USB 2.0 Port
Network:
- 1 x RJ-45: 10/100/1000Mbps Each
Remarks:
- The following features are based on firmware v1.4.7 and are subject to firmware version changes.
