Provision 32channel NVR
Provision 32channel NVR
Provision 32channel NVR

Provision 32Channel NVR PoE

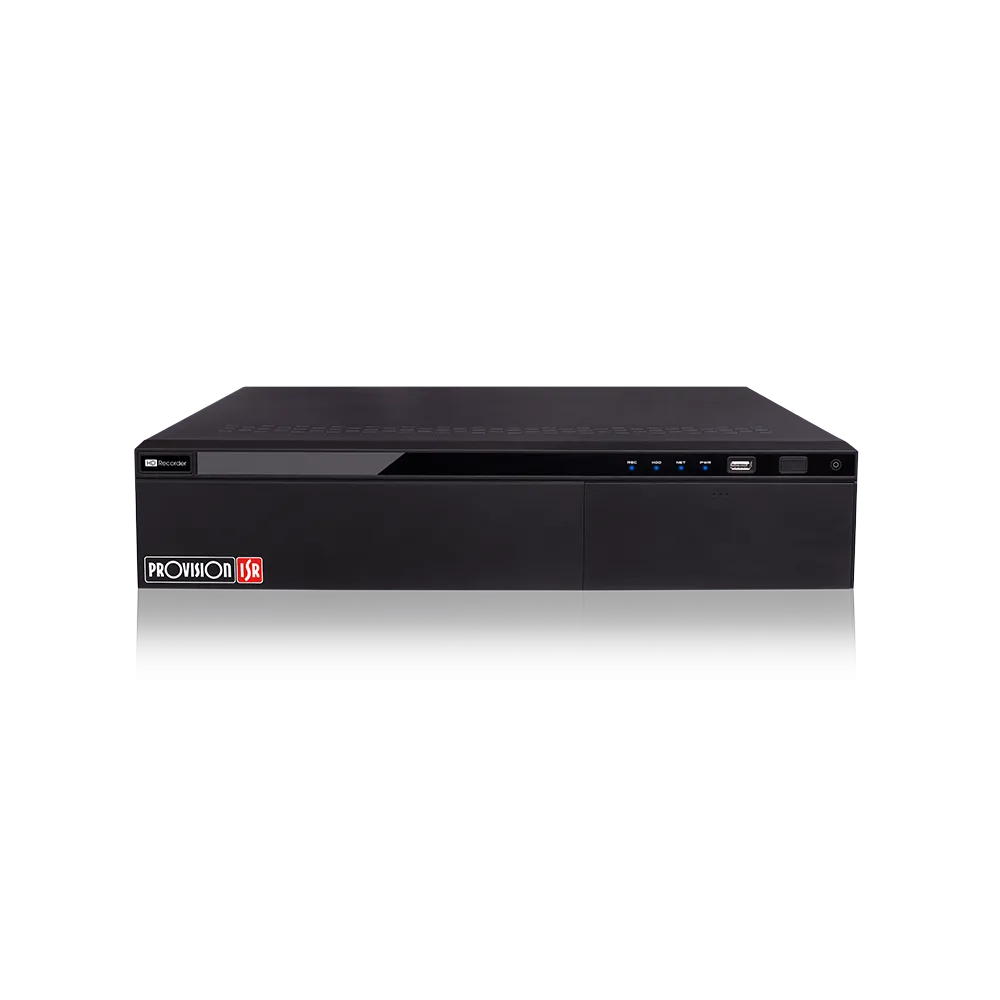

Provision-ISR NVR8-32800F-16P(2U) is a high performance network video recorder with integrated 16 channel PoE switch for high-definition surveillance. The device features 16 alarm inputs + 1 alarm outputs and supports both Face Recognition and Advanced Video Analitycs (DDA). This easy-to-install solution is suitable for big-sized installations (up to 32 channels) and provides you with everything you need for a trouble-free CCTV project.



Add to quote

Product Description

Provision-ISR NVR8-32800F-16P(2U) is a high performance network video recorder with integrated 16 channel PoE switch for high-definition surveillance. The device features 16 alarm inputs + 1 alarm outputs and supports both Face Recognition and Advanced Video Analitycs (DDA). This easy-to-install solution is suitable for big-sized installations (up to 32 channels) and provides you with everything you need for a trouble-free CCTV project.

Kit Includes

  • Standalone 32 channel NVR
  • H.265
  • Support: VMS
  • DDA Analytics
  • Facial, Fisheye & LPR
  • 8 x SATA – 10TB (not included)
  • POE

Features


Video:

  • Input: 32 Channel Support
  • 32 Channel PoE / Standard Network Connection (Via 32 x RJ-45 / Network)
  • -16 Channel Standard Connection (Via RJ-45 Network Port)
  • Output: HDMI (4K@60Hz, 4K@30Hz, 1080P), VGA (1080P, 1280×1024, 1024×768)

Bandwidth:

  • Incoming: 256Mbps
  • Outgoing: 256Mbps

Decoding Support:

  • H.265S/H.265+/H.265/H264

Analytics:

  • Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR, Thermal.
  • Advanced Face Recognition Mode: Supports up to 2 Non-AI IPC and performs face detection and recognition.

Recording:

  • 32CH 8MP Real-Time
  • FPS: 800 (PAL) / 960 (NTSC)

Playback:

  • Local: 16Ch Simultaneously
  • Remote: 32Ch Simultaneously



Audio:

  • Input: 1CH + IPC Inputs
  • Output: 1CH + IPC Output
  • 2 Way Audio

Alarm:

  • Input: 16+IPC
  • Output: 1+IPC

Storage:

  • 8 x SATA (Up to 10TB each)
  • 1 x E-SATA (Up to 10TB each)

USB Port:

  • 1 USB 2.0 Port + 1 USB 3.0 Port

Network:

  • 1 x RJ-45: 10/100/1000Mbps Each

Remarks:

  • The following features are based on firmware v1.4.7 and are subject to firmware version changes.
