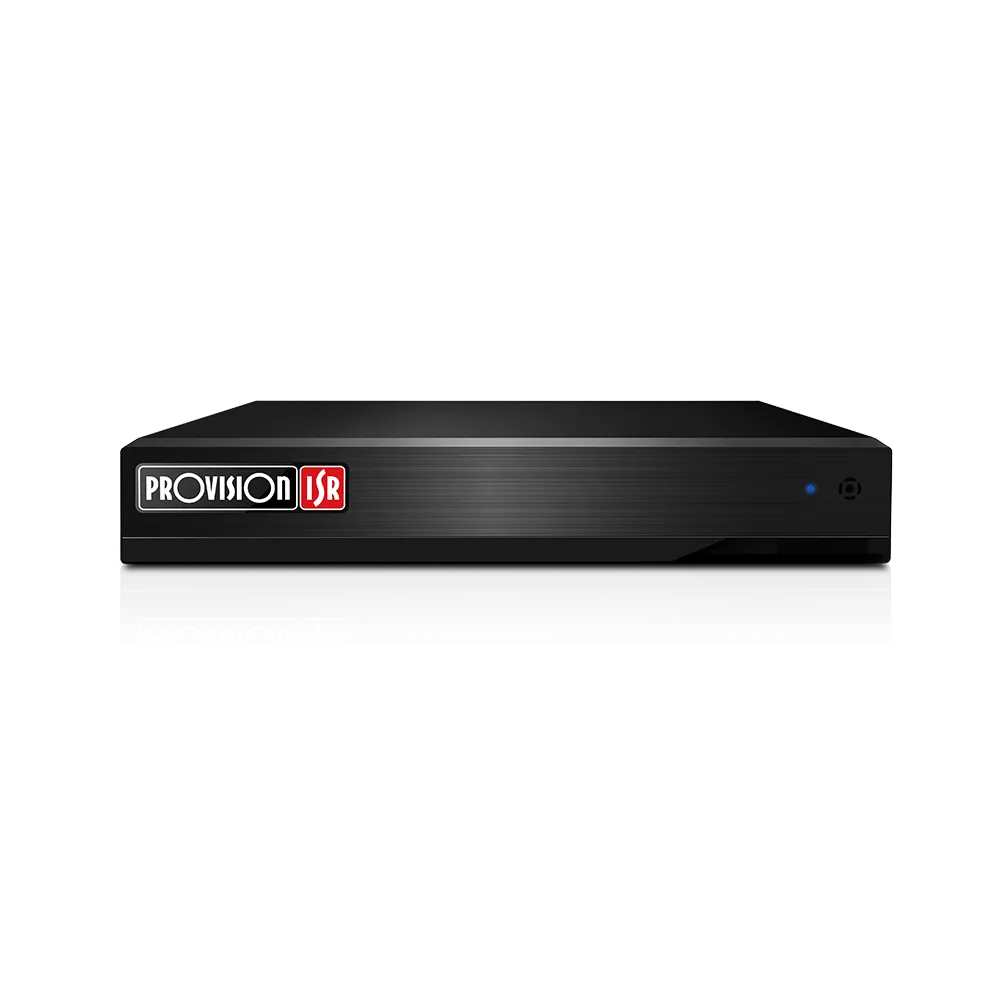

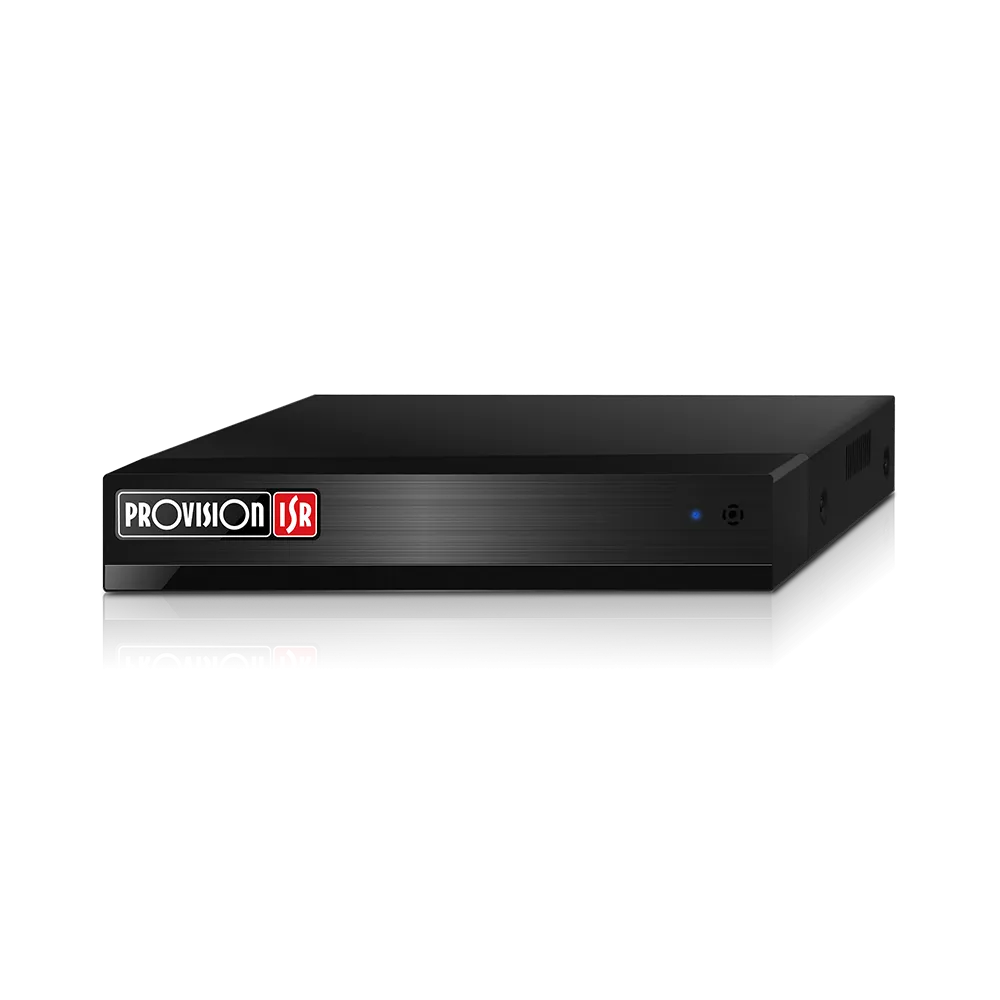

Provision 4Channel NVR

Provision-ISR NVR5-4100X+(MM) is an easy-to-install solution suitable for small-sized installations (up to 4 channels). The device, available in the elegant mini metal case, provides you with everything you need for a trouble-free CCTV project.



Product Description

Provision-ISR NVR5-8200X+(MM) is an easy-to-install solution suitable for small-sized installations (up to 8 channels) The device, available in the elegant mini metal case, provides you with everything you need for a trouble-free CCTV project.

Kit Includes

  • Standalone 4channel NVR, H.265
  • Support: VMS
  • DDA Analytics & LPR
  • 1xSATA – 6TB (not included)
  • No PoE

Features


Video:

  • Input: 4 Channel Support
  • 4 Channel Standard Connection (Via RJ-45 Network Port)
  • Output: HDMI / VGA (1080P, 1280×1024, 1024×768)

Bandwidth:

  • Incoming: 32Mbps
  • Outgoing: 32Mbps
  • Decoding Support: H.265S/H.265+/H.265/H264

Analytics:

  • Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, Smart Search, LPR, Loitering Detection, Illegal Parking, Audio Exception
  • *DDA/LPR Analytics Live Snapshots are not supported

Recording:

  • 4CH 5MP Real-Time
  • FPS: 100 (PAL) / 120 (NTSC)

Playback:

  • Local: 4Ch Simultaneously
  • Remote: 4Ch Simultaneously



Audio:

  • Input: IPC Inputs Only
  • Output: IPC Outputs Only

Alarm:

  • Input: Based on IPC Only
  • Output: Based on IPC Only

Storage:

  • 1 x SATA (Up to 6TB each)

USB Port:

  • 2 USB 2.0 Port

Network:

  • 1 x RJ-45: 10/100Mbps Each

Remarks:

  • The following features are based on firmware v1.4.10_70351 and are subject to firmware version changes.
