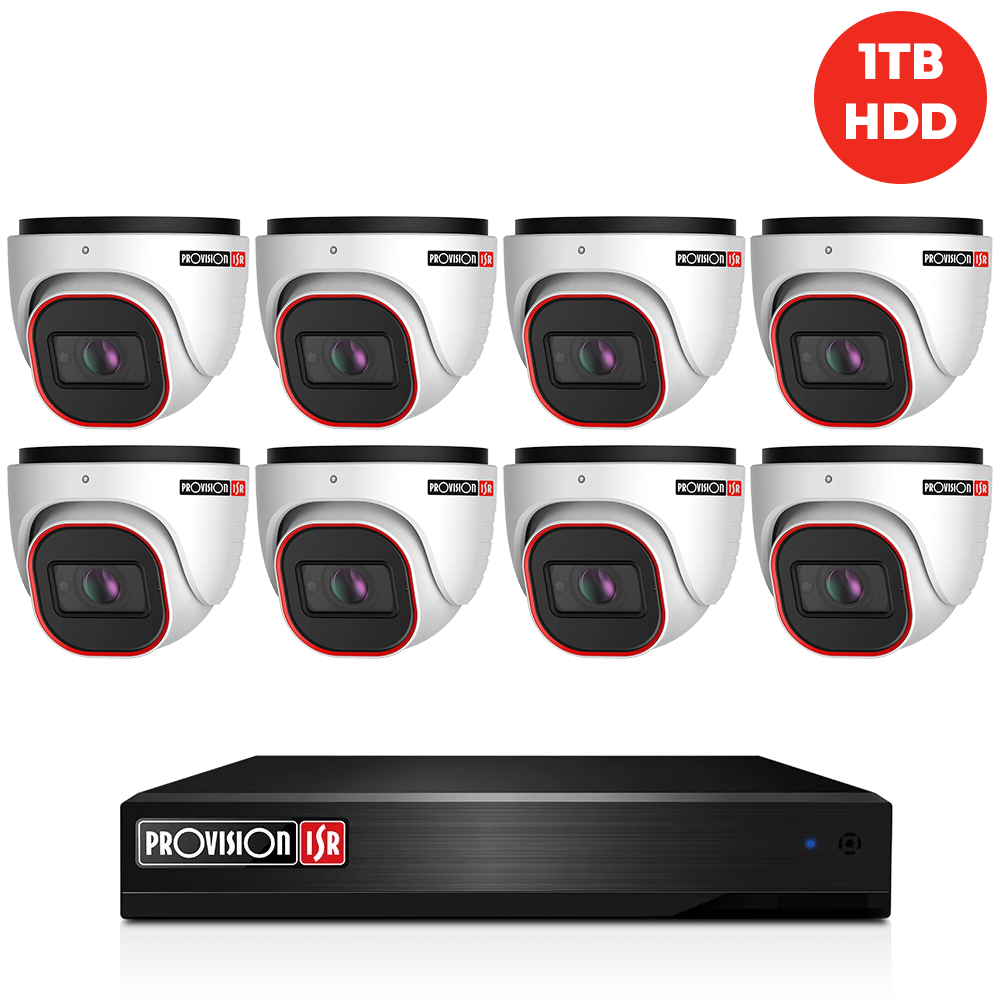

Provision NVR Kit + 8 IP Dome Cameras
1xNVR5-8200X NVR, 1x1TB HDD, 8xIP Dome, 1xPOE switch, 16xRJ45 plug, 16xRJ45 boots, 1xCAT5 cable 100m
Product Description
Provision-ISR NVR5-8200X+(MM) is an easy-to-install solution suitable for small-sized installations (up to 8 channels) The device, available in the elegant mini metal case, provides you with everything you need for a trouble-free CCTV project.
Kit Includes
- 1 x NVR5-8200X NVR
- 1 x 1TB HDD
- 8 x IP Dome
- 1 x POE switch
- 16 x RJ45 plug
- 16 x RJ45 boots
- 1 x CAT5 cable 100m
Features
Video:
- Input: 8 Channel Support
- 8 Channel Standard Connection (Via RJ-45 Network Port)
- Output: HDMI / VGA (1080P, 1280×1024, 1024×768)
Bandwidth:
- Incoming: 40Mbps
- Outgoing: 40Mbps
Decoding Support:
- H.265S/H.265+/H.265/H264
Analytics:
- Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, Smart Search, LPR, Loitering Detection, Illegal Parking, Audio Exception
- *DDA/LPR Analytics Live Snapshots are not supported
Recording:
- 8CH 5MP Real-Time
- FPS: 200 (PAL) / 240 (NTSC)
Playback:
- Local: 8Ch Simultaneously
- Remote: 8Ch Simultaneously
Audio:
- Input: IPC Inputs Only
- Output: IPC Outputs Only
Alarm:
- Input: Based on IPC Only
- Output: Based on IPC Only
Storage:
- 1 x SATA (Up to 6TB each)
USB Port:
- 2 USB 2.0 Port
Network:
- 1 x RJ-45: 10/100Mbps Each
Remarks:
- The following features are based on firmware v1.4.10_70351 and are subject to firmware version changes.
